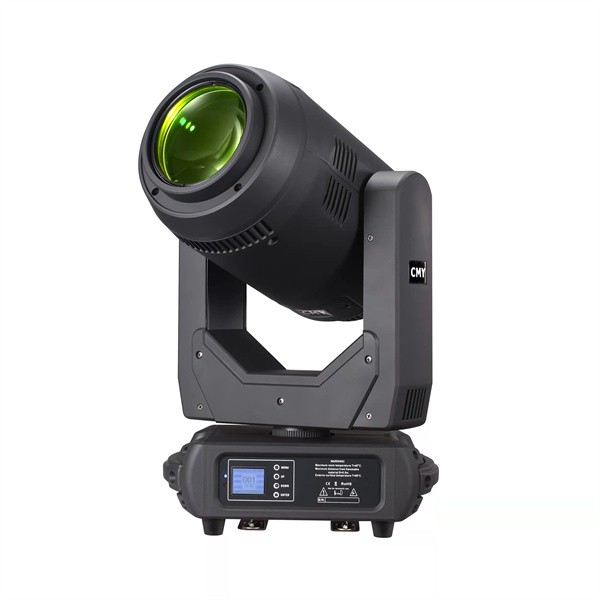

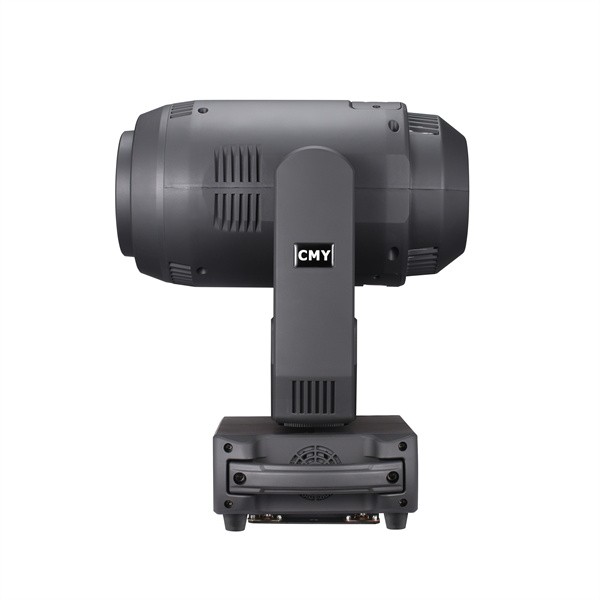

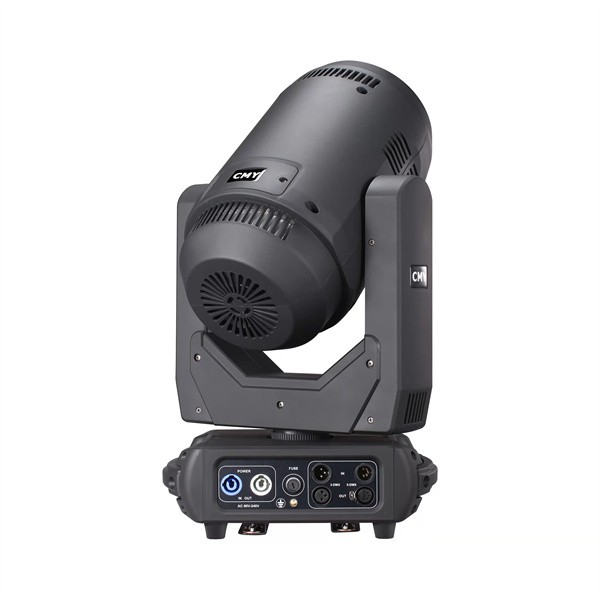

Model: DB-CMY350
Light source specification:
Light source:350W high brightness LED
Color temperature:7500K-8000K
Life time:50000 hours
colour:
1 color wheel: 7 colors + white
Variable speed bidirectional with rainbow effect
Step/Linear conversion color optional
With C M Y function, color can be adjusted;
Can be mixed to make the color richer.
Rotation gobo wheel:
1 rotating gobo wheel: 7 gobos + white
The pattern plate adopts a detachable design, which is more convenient to replace the pattern plate
Product Features:
1. Hige power led 350w osram light resource
2. Scan position memory, auto reposition after unexpected movement
3. Specific high precision optic lens system
4. The lens can be direction rotating
5. Built-in running programs
6. CMY + CTO color system
7. LCD display
8. Aluminium structure with die-cast plastic cover
9. High efficiency low noise cooling system
10.20 DMX512 channels
11. Powercon connector IN/OUT
12. 3-pin XLR connectors IN/OUT
Technical Parameters:
Product Name | led zoom 8-35° 350w CMY CTO 3IN1 moving head light |
Model | DB-CMY350 |
Input Voltage | AC90-240V, 50-60Hz |
Power Consumption | 400W |
LED Quantity | 350W high brightness LED |
Lifespan | 50,000 hours, low power consumption |
Color system | CMY+CTO color system |
Pan/Tilt Movement | 540°Pan movement,270°Tilt movement |
Prism | 5 facet prism |
Dimmer | 0-100% linear LED dimmer |
Color Wheel | 7 colors+ white |
Dimmer | 0-100% linear LED dimmer |
Gobo | 7 rotation gobo |
Zoom | 8-35° |
Waterproof Rating | IP20 |
Ambient Temperature | -25℃ ~ 45℃ |
Net Weight | 16 KG |
Gross Weight | 19KG |
Control Signal | DMX512,Master-slave,Auto,Sound |
Control Channel | 20 international DMX512 channels |
Dimensions | 300*220*480mm |
Packing Size | 312*222*590mm |
