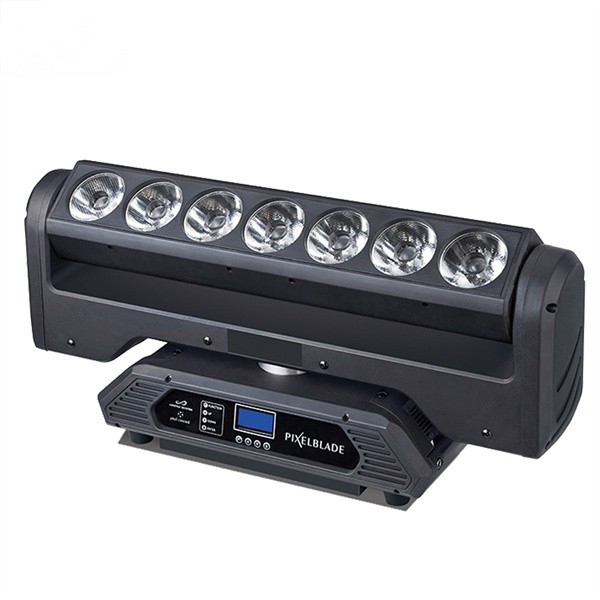

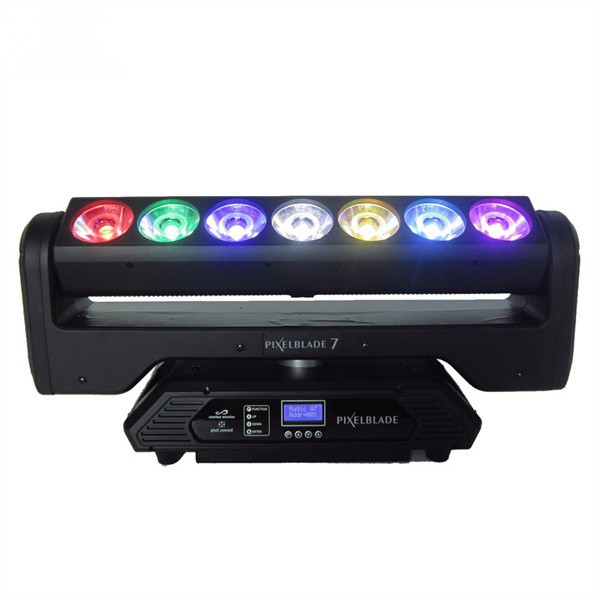

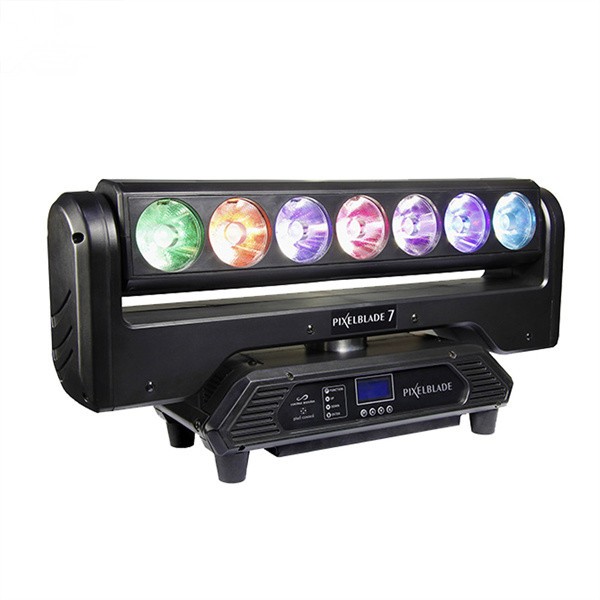

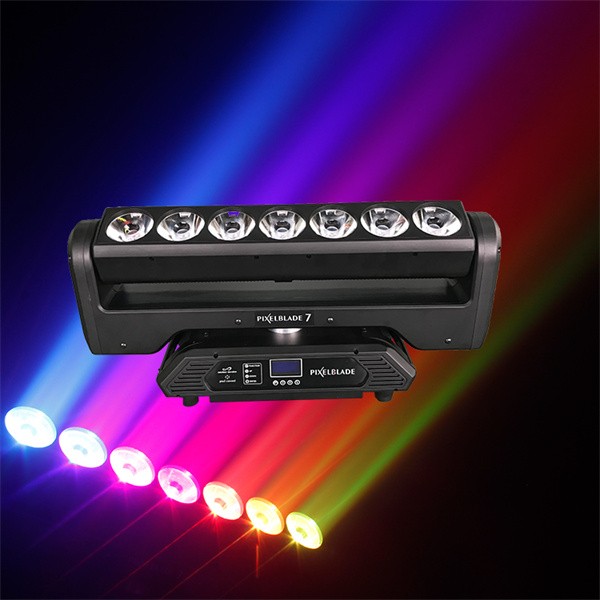

7PCS Pixel Blade Magic Mapping LED Light DB-WL0715
7PCS 15W BEAM LIGHT is a breathtaking and imaginative stage performer that provides beam effect and visual effects..This product use 7pcs 40W 4in1 RGBW LEDs,cooperate 6pcs specially designed efficient optical lenses.Lens board have 360° endless rotation function,can crate multiple petal shaped mini sharpy beam. This mini beam can controlled in open and close,build a great dynamic lighting effects. This light have 2kinds DMX control modes,can meet different professional lighting designer' needs.Pan/Tilt scan quiet,fast and accurate.This product available for all kinds of concert which need high demand brightness,TV studio,stage,bar,club and wedding.
Product Features:
1. Each color and each LED controllable individually
2. Scan position memory, auto reposition after unexpected movement
3. Specific high precision optic lens system
4. The lens can be direction rotating
5. Built-in running programs
6. Built-in color and graphic effect macros
7. LCD display
8. Aluminium structure with die-cast plastic cover
9. High efficiency low noise cooling system
10.12/15/39 DMX channels
11. Powercon connector IN/OUT
12. 3-pin XLR connectors IN/OUT
Technical Parameters:
| Product Name | Disco 7x15w rgbw 4in1 Pixel Blade Magic Mapping led Moving Head light |
| Model | DB-WL1240 |
| Input Voltage | AC90-240V, 50-60Hz |
| Power Consumption | 200W |
| LED Quantity | 7PCS 15W 4in1 RGBW LED |
| Lifespan | 50,000 hours, low power consumption |
| Effect | Petal-like mini beam effects, Pixel patterning macro effects |
| Pan/Tilt Movement | 540°Pan movement,240°Tilt movement |
| Strobe | 1-25 times/sec high speed LED shutter/strobe effect with variable speed; Preset variable/random strobe and dimming pulse effect |
| Dimmer | 0-100% linear LED dimmer |
| Waterproof Rating | IP20 |
| Ambient Temperature | -10℃ ~ 45℃ |
| Net Weight | 9KG |
| Gross Weight | 11KG |
| Control Signal | DMX512,Master-slave,Auto,Sound |
| Control Channel | 12/15/39 international DMX512 channels |
| Dimensions | 580*170*250mm |
| Packing Size | 640(D)*320(W)*245(H)mm |
