DB-Tiger

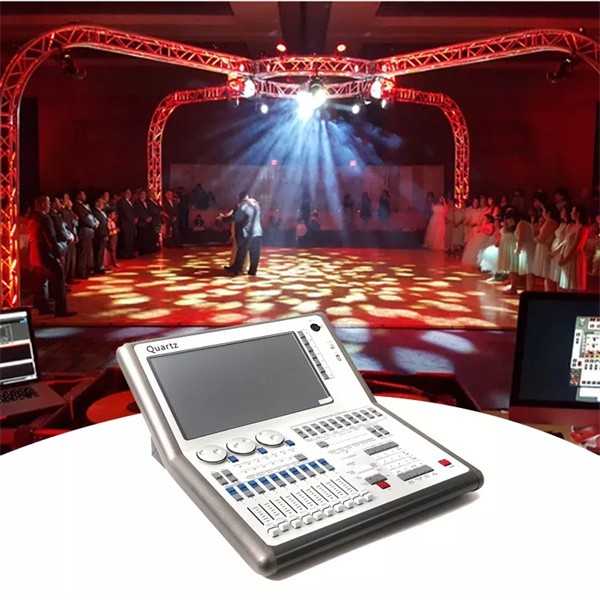

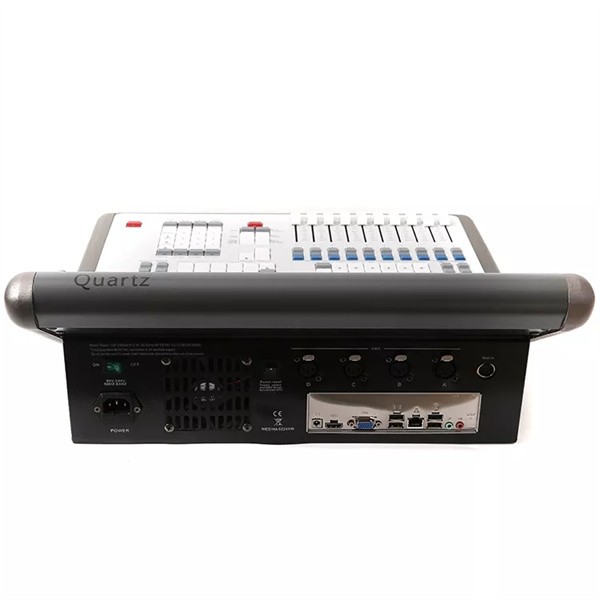

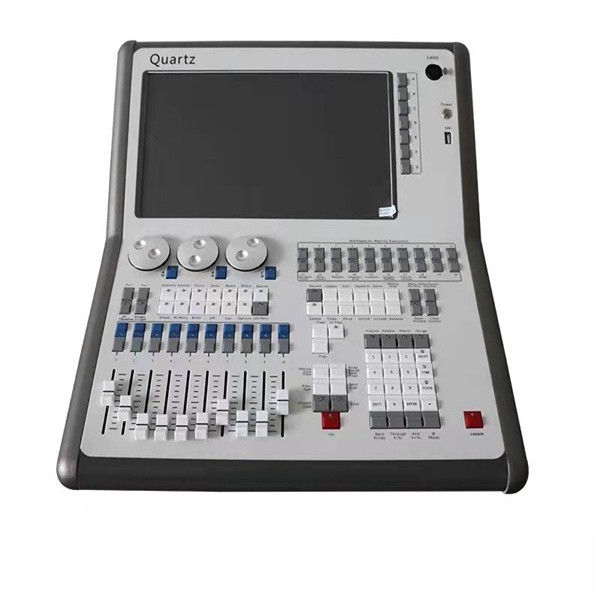

Factory Directly sale Tiger touch computer light console

specification

Input voltage: AC 90~ 240V,50-60Hz;

Console itself 4/8/12 DMX output ports 2048/4096/6144 DMX channels; 10 macro keys, you can edit any program; 20 the reproducing

putt, support 1000 virtual reproduction; Powerful properties control window, CMY \ RGB palette pickup system; Support CITP

protocol, or the server can preview digital lights built material;

Lighting Console Quartz Tiger Touch Quartz TT Lighting Console

Parameter configuration

I3 processor, 64G solid state drive, 90 minutes ups power supply Built-in 4 DMX output ports, 2048 channels; Support Art-net
network output, which can be expanded to 12 Universe DMX outputs through the network Support Titan-net protocol, expandable to 64
Universe DMX Output 10 mechanical page turning and playback faders 20 custom macro function buttons built-in a 12.1
"high-brightness capacitive touch screen, which can control the screen brightness and expand a Titan Fader wing (Replay auxiliary
station, 20 playback faders, 30 custom macro functions, USB power supply) Support headphone output (Headphone) 1 Gigabit network
interface, support Art-net, Titan-net, Streaming CAN protocol and others TITAN system console performance file compatible products
Size: 425*466*194mm Weight: 8kg
