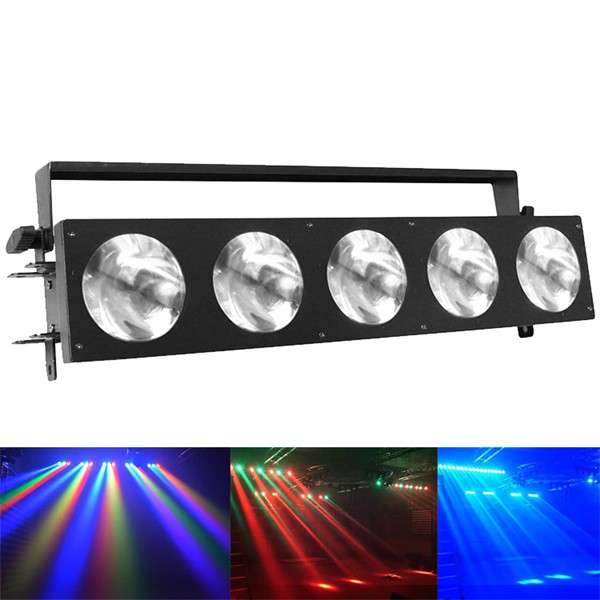

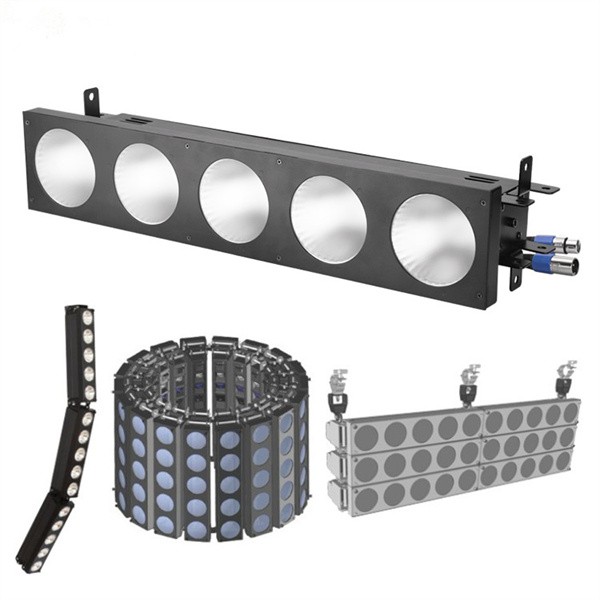

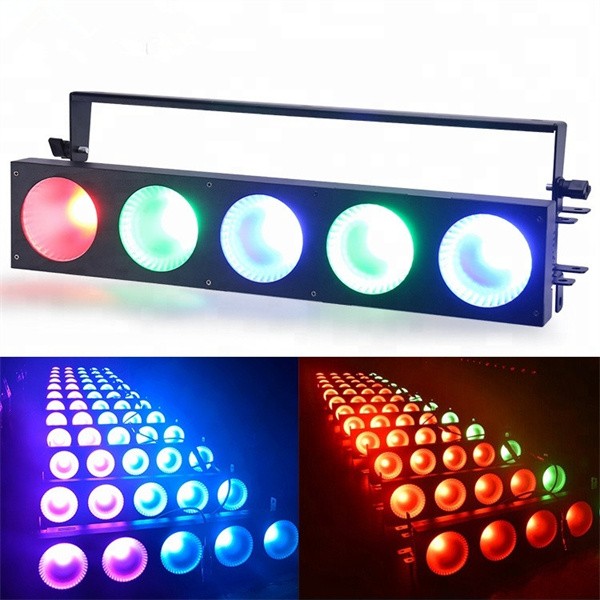

5PCS*30W RGB 3IN1 Led Matrix Bar Wash Stage Light DB-WLPX0530
Model: DB-PX0530
Advantages
High power, 26000 lux at 5 meters
Over-heat protection High speed strobe effect
Built-in program
Color display panel, easy operation
Low noise cooling system
Product Features:
1. Each color is 30W LED Chip
2. Scan position memory, auto reposition after unexpected movement
3. Specific high precision optic lens system
4. The lens can be direction rotating
5. Built-in running programs
6. Built-in color and graphic effect macros
7. LCD display
8. Aluminium structure with die-cast plastic cover
9. High efficiency low noise cooling system
10.1/3/5/7/15/18 DMX512 channels
11. Powercon connector IN/OUT
12. 3-pin XLR connectors IN/OUT
Technical Parameters:
| Product Name | led 5pcs 30w RGB 3in1 led matrix bar wash stage Light |
| Model | DB-PX0530 |
| Input Voltage | AC90-240V, 50-60Hz |
| Power Consumption | 200W |
| LED Quantity | 5PCS 30W 3in1 RGB LED |
| Lifespan | 50,000 hours, low power consumption |
| Effect | Petal-like mini beam effects, Pixel patterning macro effects |
| Pan/Tilt Movement | 540°Pan movement,240°Tilt movement |
| Strobe | 1-25 times/sec high speed LED shutter/strobe effect with variable speed; Preset variable/random strobe and dimming pulse effect |
| Dimmer | 0-100% linear LED dimmer |
| Zoom | 6-42° |
| Waterproof Rating | IP20 |
| Ambient Temperature | -25℃ ~ 45℃ |
| Net Weight | 3.5 KG |
| Gross Weight | 4 KG |
| Control Signal | DMX512,Master-slave,Auto,Sound |
| Control Channel | 12/14/30/28 international DMX512 channels |
| Dimensions | 62*15*16mm |
| Packing Size | 680*180*230mm |
