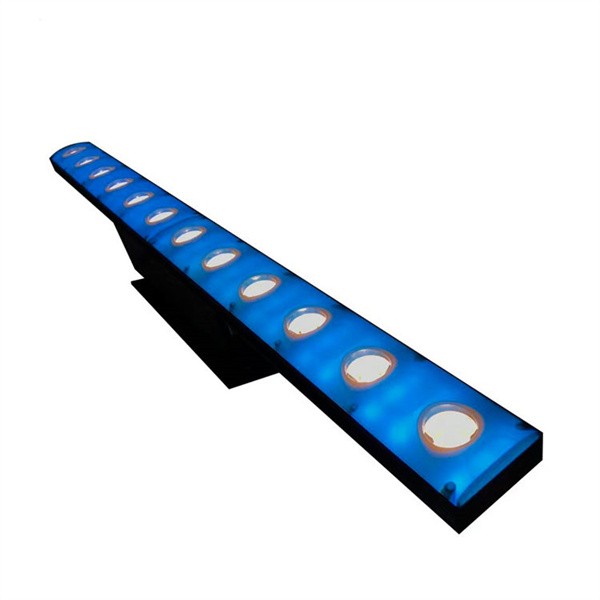

14*3W Pixel RGBW 56pcs 5050SMD Led Bar Wash Stage Light DB-PX1403

Model: DB-PX1403
High power, 26000 lux at 5 meters
Over-heat protection High speed strobe effect
Built-in program
Color display panel, easy operation
Low noise cooling system

Product Features:

1. Each color is 3W LED Chip 56PCS 5050SMD RGB

2. Scan position memory, auto reposition after unexpected movement

3. Specific high precision optic lens system

4. The lens can be direction rotating

5. Built-in running programs

6. Built-in color and graphic effect macros

7. LCD display

8. Aluminium structure with die-cast plastic cover

9. High efficiency low noise cooling system

10.6/8/12/20 DMX512 channels

11. Powercon connector IN/OUT

12. 3-pin XLR connectors IN/OUT


Technical Parameters:

Product Nameled 14pcs 3w RGB smd 5050 3in1 led matrix bar wash stage Light
Input VoltageAC90-240V, 50-60Hz
Power Consumption100W
LED Quantity14PCS 3W 3in1 RGB LED SMD 5050
Lifespan50,000 hours,  low power consumption

Petal-like mini beam effects, Pixel patterning macro effects

Pan/Tilt Movement

540°Pan movement,240°Tilt movement


1-25 times/sec high speed LED shutter/strobe effect with variable speed;

Preset variable/random strobe and dimming pulse effect

Dimmer0-100% linear LED dimmer
Waterproof RatingIP20
Ambient Temperature -25℃ ~ 45℃
Net Weight3 KG
Gross Weight4 KG
Control Signal DMX512,Master-slave,Auto,Sound
Control Channel6/8/12/60  international DMX512 channels
Packing Size100*140*200mm
