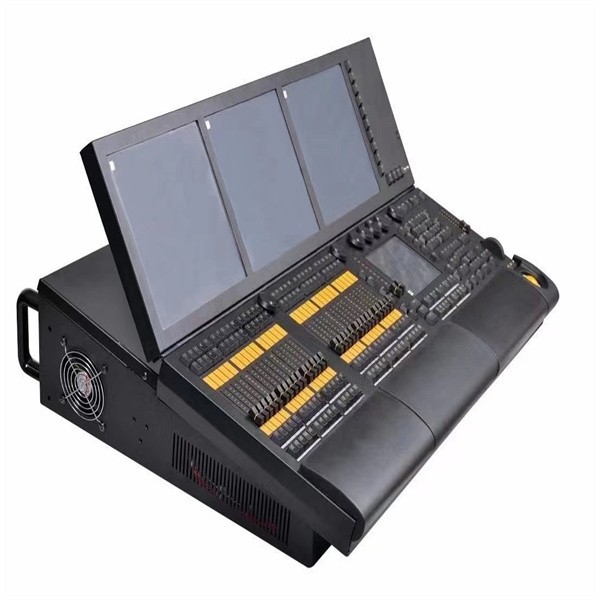

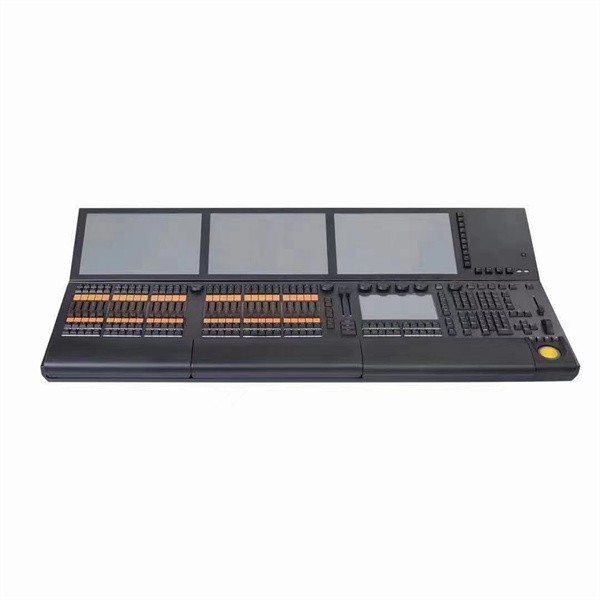

MA controller grand ma2 onpc command wing black horse touch screen lighting board console light usb dmx

grand ma2 onpc command wing black horse touch screen lighting board console light usb dmx

Specification

• Linux operating system

• Built-in 3 electric lifting 15.4-inch industrial full-view touch screen, 1 9-inch touch screen

• powerful i5CPU, 4G memory, built-in solid state drive

• 6 DMX output ports, 1 composite DMX input port (can be set as output),

• Up to 65536 channels can be connected to the NPU

• 30 electric replay faders with sensor function (60mm), 80 executive buttons

• 1 total control putter

• 1 dimming wheel

• 1 controllable XY axis high precision imported trackball

• 2 A/B field electric push rods (100mm)

• 7 imported industrial grade wear-resistant encoders (with Push function)

• 2 Gigabit Ethernet ports, support MA NET, ARTNET, etc.

• 5 USB ports, 1 backup USB port

• 2 work light interfaces

• 2 DVI interfaces, expandable two displays

• MIDI input and output interface

• Built-in 2 drawers, built-in yellow backlit mechanical keyboard (backlight brightness adjustable)

• Wide-voltage industrial power supply 100V-240V 50/60Hz

• Built-in high power UPS uninterruptible power supply

• Support RDM function
