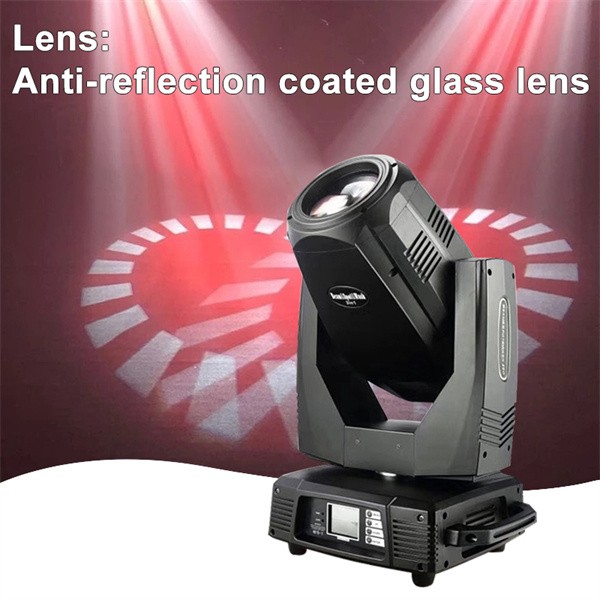

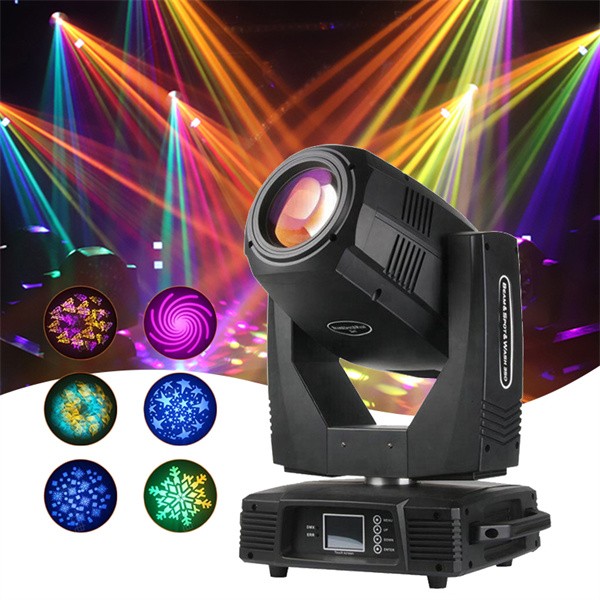

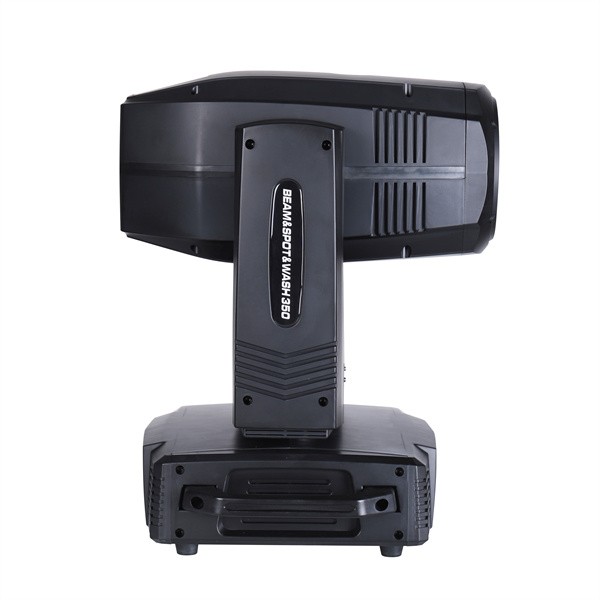

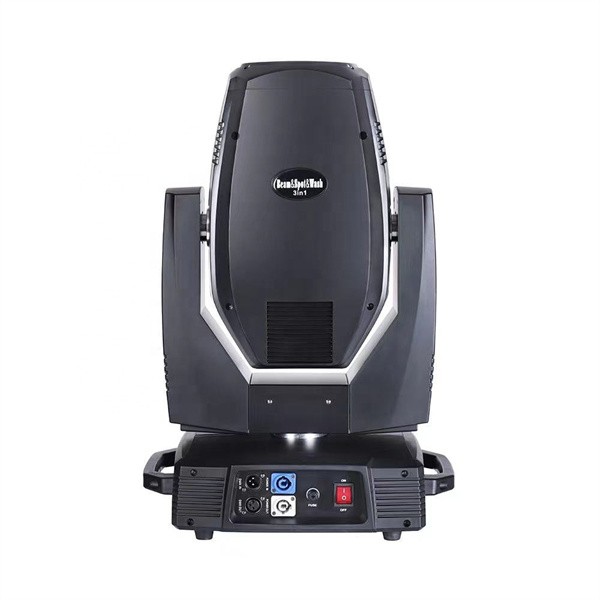

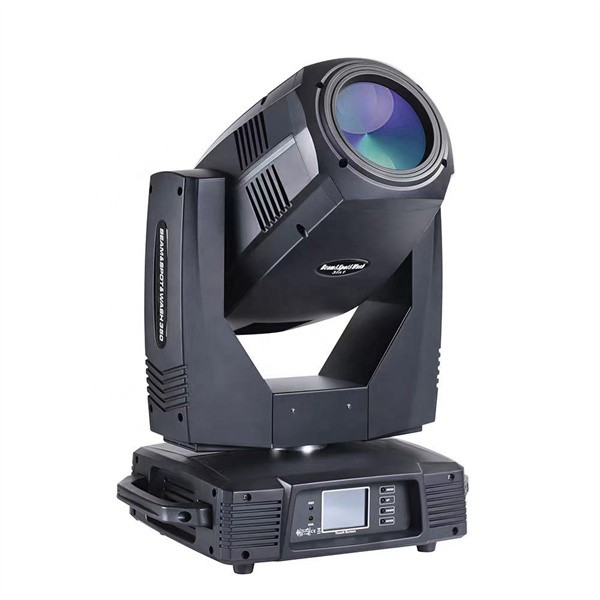

17R 350W Beam Spot Wash 3in1 Light DB-BG350
Model：DB-BG350
* High Power Original 350W 17R Original Yodn
* 1500 Hours Lamp Life Span
* 540° pan and 270° tilt movement
* 16 bit smooth and precise resolution for PAN/TILT movement
* Scan position memory, auto X/Y reposition Correction
* Zoom Angle from 0- 45°
* Color Wheel with 14 colors + Open
*Gobo1: 17+Open Static Gobo Wheel
* Gobo2:9+Open Rotation Glass Gobo
* Prism: 8 face Prism,16-Facet Circular Prism with Speed Adjustable and variable direction
* 0-100% Linear Dimmer
* Preset variable/random strobe
* Linear Focus and Variable Frost Filter
* 16 24 DMX Channels
* Control: DMX 512, Master/Salve, Sound activity & work auto
* -25℃-50℃ Working Temperature
* IP20
* Aluminium and High Temperature Engineering Plastic housing
* Apply for nightclub, bar, wedding , Live Concerts etc.
Product Features:
* High Power Original 350W 17R Original Yodn Lamp
* 1500 Hours Lamp Life Span
* 540° pan and 270° tilt movement
* 16 bit smooth and precise resolution for PAN/TILT movement
* Scan position memory, auto X/Y reposition Correction
* Zoom Angle from 4- 45°
* Color Wheel with 14 colors + Open
* Gobo wheel with 17 Fixed Gobos+Open + 9 rotation gobo wheel
* Prism: 8-Facet Circular Prism + 16-Facet Circular Prism with Speed Adjustable and variable direction
* 0-100% Linear Dimmer
* Preset variable/random strobe
* Linear Focus and Variable Frost Filter
* 16/24 DMX Channels
* Control: DMX 512, Master/Salve, Sound activity & work auto
* -25℃-50℃ Working Temperature
* IP20
* Aluminium and High Temperature Engineering Plastic housing
* Apply for nightclub, bar, wedding , Live Concerts etc.
Technical Parameters:
| Product Name | 17R 350W Beam Spot Wash 3in1 moving head light |
| Model | DB-BG550 |
| Input Voltage | AC90-240V, 50-60Hz |
| Power Consumption | 500W |
| Lamp | High Power Original Osram Sirius 550W Lamp |
| Lifespan | 1500 hours, low power consumption |
| Color wheel | 14 colors + Open |
| Fix gobo | 17 fixed gobo+Open |
| Rotation gobo | 9 roration gobo+Open |
| Prism | 8-Facet Circular Prism + 16-Facet Circular Prism with Speed |
| Focus | Linear Focus and Variable Frost Filter |
| Pan/Tilt Movement | 540°Pan movement,270°Tilt movement |
| Strobe | 1-25 times/sec high speed shutter/strobe effect with variable speed; Preset variable/random strobe and dimming pulse effect |
| Dimmer | 0-100% linear LED dimmer |
| Zoom Angel | 0-45° Linear Zoom |
| Waterproof Rating | IP20 |
| Ambient Temperature | -20℃ ~ 45℃ |
| Net Weight | 22 KG |
| Gross Weight | 23 KG |
| Control Signal | DMX512,Master-slave,Auto,Sound |
| Control Channel | 16 /24 international DMX512 channels |
| Dimensions | 41*300*63mm |
| Packing Size | 500(D)*500(W)*600(H)mm |
